Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6007-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6007-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$197.63

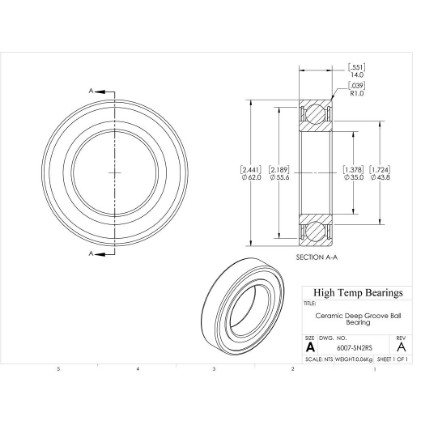

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)35
D (mm)62
B (mm)14
d1 (mm)43.8
D2 (mm)55.6
C (lb)894
C0 (lb)579
Nmax (RPM)9100
Weight(lbs)0.14
Code101272
PackageQTY1
UOMEA
C (kN)3.975
C0 (kN)2.575
Ra (mm)1
Da (mm)57.4
damin (mm)39.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
