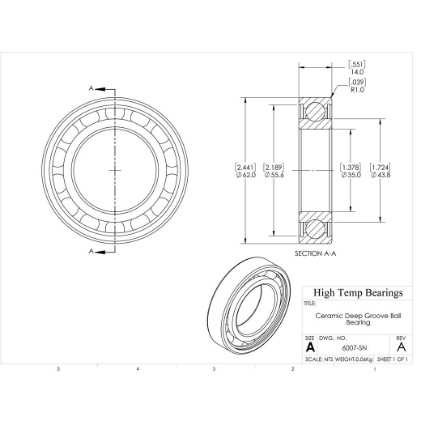

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6007-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6007-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$197.63
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)35
D (mm)62
B (mm)14
d1 (mm)43.8
D2 (mm)55.6
C (lb)894
C0 (lb)579
Nmax (RPM)9100
Weight(lbs)0.14
Code101271
PackageQTY1
UOMEA
C (kN)3.975
C0 (kN)2.575
Ra (mm)1
Da (mm)57.4
damin (mm)39.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
