1200°C Silicon Carbide Deep Groove Ball Bearing: 6007-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6007-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$237.52
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

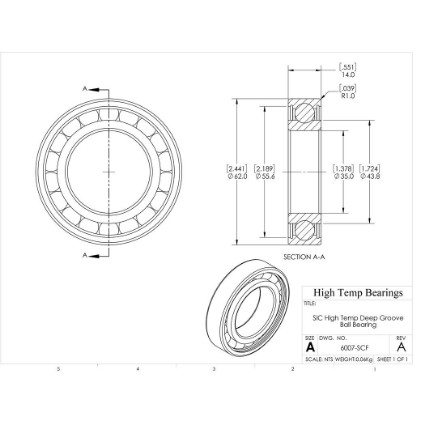

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Shaft Size35mm
D (mm)62
B (mm)14
d1 (mm)43.8
D2 (mm)55.6
C (lb)715
C0 (lb)463
Nmax (RPM)5460
Weight(lbs)0.14
Code101270
PackageQTY1
UOMEA
Bore (mm)35
C (kN)3.18
C0 (kN)2.06
Ra (mm)1
Da (mm)57.4
damin (mm)39.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
MaterialSiC
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Operation above the continuous duty temperature will reuslt in a loss of clearnce and reduce bearing life.
