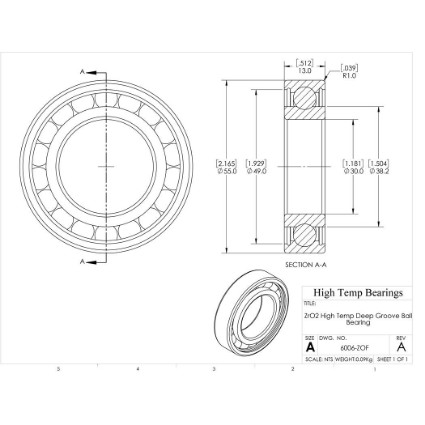

400°C Zirconium Oxide Deep Groove Ball Bearing: 6006-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6006-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$94.96
This product has a minimum quantity of 5
CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)30
D (mm)55
B (mm)13
d1 (mm)38.2
D2 (mm)49
C (lb)890
C0 (lb)556
Nmax (RPM)6300
Weight(lbs)0.19
Code270015
PackageQTY1
UOMEA
SeriesZrO2
C (kN)3.96
C0 (kN)2.475
Ra (mm)1
Da (mm)50.4
damin (mm)34.6
kr25
ka0.25
fo15
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
