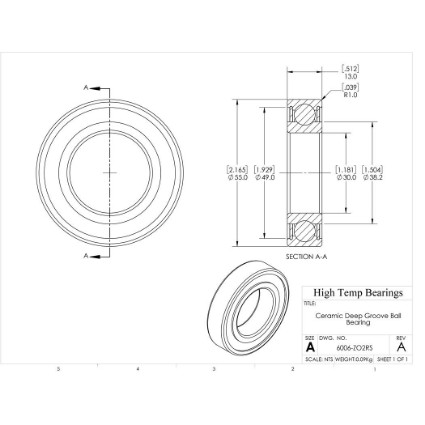

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6006-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6006-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$92.40
This product has a minimum quantity of 2
CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)30
D (mm)55
B (mm)13
d1 (mm)38.2
D2 (mm)49
C (lb)890
C0 (lb)556
Nmax (RPM)9000
Weight(lbs)0.19
Code101265
PackageQTY1
UOMEA
C (kN)3.96
C0 (kN)2.475
Ra (mm)1
Da (mm)50.4
damin (mm)34.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
