800°C Silicon Nitride Deep Groove Ball Bearing: 6006-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6006-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$182.20
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

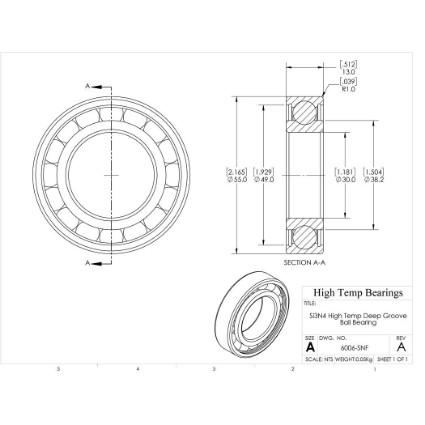

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Shaft Size30mm
D (mm)55
B (mm)13
d1 (mm)38.2
D2 (mm)49
C (lb)742
C0 (lb)464
Nmax (RPM)7350
Weight(lbs)0.1
Code270014
PackageQTY1
UOMEA
Bore (mm)30
C (kN)3.3
C0 (kN)2.0625
Ra (mm)1
Da (mm)50.4
damin (mm)34.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
MaterialSi3N4
Silicon Nitride has a good combination of mechanical, thermal, and electrical properties. It is extremely hard and has exceptional thermal shock, impact resistance, and high-temperature capabilities, with high creep, oxidation, and wear resistance but is exceptionally light in weight. Its low thermal and electrical conductivity is especially useful in applications where corrosion, electric or magnetic fields prohibit the use of metals. It is an excellent choice when high-temperature and high-load abilities are needed. However, it has a very low rate of thermal expansion that must be accommodated to prevent excessive tensile stress on the inner race.
