Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6006-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6006-SC

Deep Groove, Single Row, Ceramic, Open SiC Ball Bearing
$171.97
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

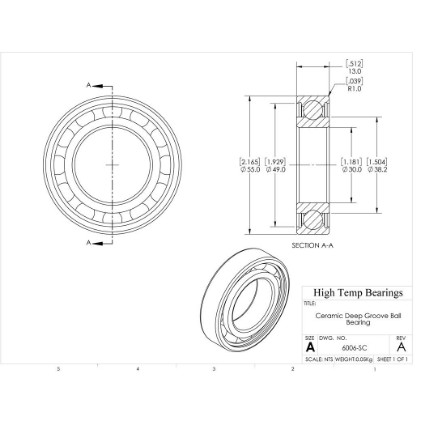

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)30
D (mm)55
B (mm)13
d1 (mm)38.2
D2 (mm)49
C (lb)593
C0 (lb)371
Nmax (RPM)9000
Weight(lbs)0.1
Code101260
PackageQTY1
UOMEA
C (kN)2.64
C0 (kN)1.65
Ra (mm)1
Da (mm)50.4
damin (mm)34.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
