400°C Zirconium Oxide Deep Groove Ball Bearing: 6005-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6005-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$89.84
This product has a minimum quantity of 5

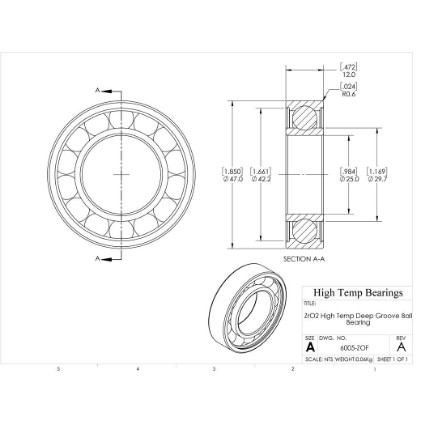

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)25
D (mm)47
B (mm)12
d1 (mm)29.7
D2 (mm)42.2
C (lb)681
C0 (lb)395
Nmax (RPM)7560
Weight(lbs)0.13
Code101257
PackageQTY1
UOMEA
SeriesZrO2
C (kN)3.03
C0 (kN)1.755
Ra (mm)0.6
Da (mm)43.8
damin (mm)28.2
kr25
ka0.25
fo14
r (mm)0.6
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
