Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6005-ZO

Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6005-ZO

Deep Groove, Single Row, Ceramic, Naked, ZrO2
$87.27
This product has a minimum quantity of 2

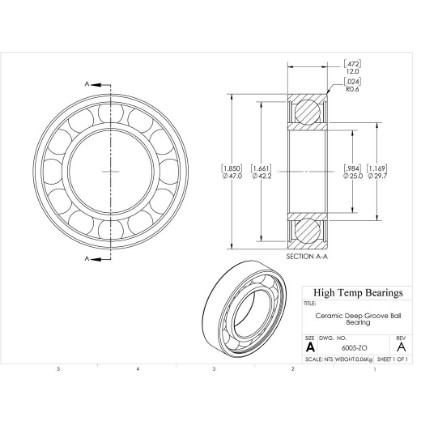

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Bore (mm)25
D (mm)47
B (mm)12
d1 (mm)29.7
D2 (mm)42.2
C (lb)681
C0 (lb)395
Nmax (RPM)10800
Weight(lbs)0.13
Code101255
PackageQTY2
UOMEA
C (kN)3.03
C0 (kN)1.755
Ra (mm)0.6
Da (mm)43.8
damin (mm)28.2
kr25
ka0.25
fo14
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
