1200°C Silicon Carbide Deep Groove Ball Bearing: 6005-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6005-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$131.33
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

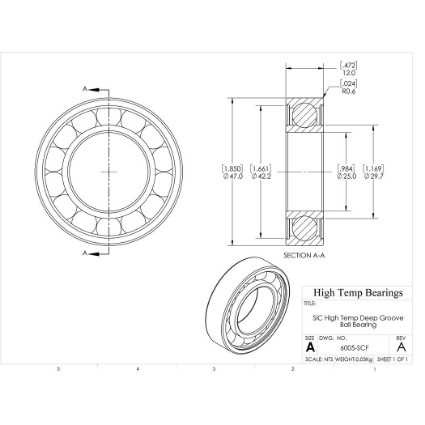

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)25
D (mm)47
B (mm)12
d1 (mm)29.7
D2 (mm)42.2
C (lb)454
C0 (lb)263
Nmax (RPM)7560
Weight(lbs)0.07
Code101252
PackageQTY1
UOMEA
C (kN)2.02
C0 (kN)1.17
Ra (mm)0.6
Da (mm)43.8
damin (mm)28.2
kr25
ka0.25
fo14
r (mm)0.6
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
