Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6005-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6005-SC2RS

Deep Groove, Single Row, Ceramic, Sealed SiC Ball Bearing
$161.70
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

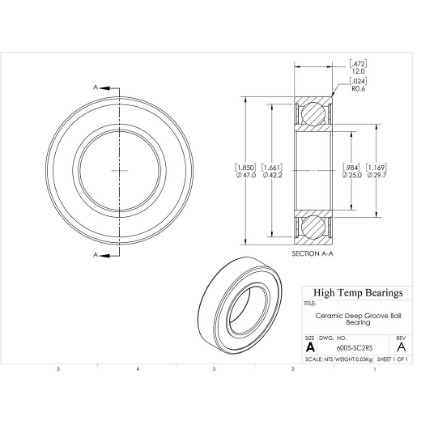

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)25
D (mm)47
B (mm)12
d1 (mm)29.7
D2 (mm)42.2
C (lb)454
C0 (lb)263
Nmax (RPM)10800
Weight(lbs)0.07
Code101251
PackageQTY1
UOMEA
C (kN)2.02
C0 (kN)1.17
Ra (mm)0.6
Da (mm)43.8
damin (mm)28.2
kr25
ka0.25
fo14
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
