400°C Zirconium Oxide Deep Groove Ball Bearing: 6004-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6004-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$73.15
This product has a minimum quantity of 5

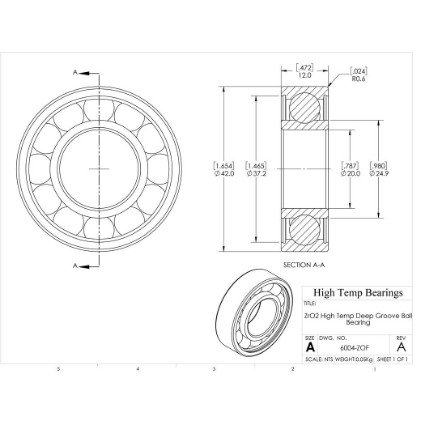

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)20
D (mm)42
B (mm)12
d1 (mm)24.9
D2 (mm)37.2
C (lb)634
C0 (lb)341
Nmax (RPM)8820
Weight(lbs)0.11
Code270011
PackageQTY1
UOMEA
SeriesZrO2
C (kN)2.82
C0 (kN)1.515
Ra (mm)0.6
Da (mm)38.8
damin (mm)23.2
kr25
ka0.25
fo14
r (mm)0.6
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
