Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6004-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6004-SN

Deep Groove, Single Row, Ceramic, Open, Si3N4
$110.37
This product has a minimum quantity of 2

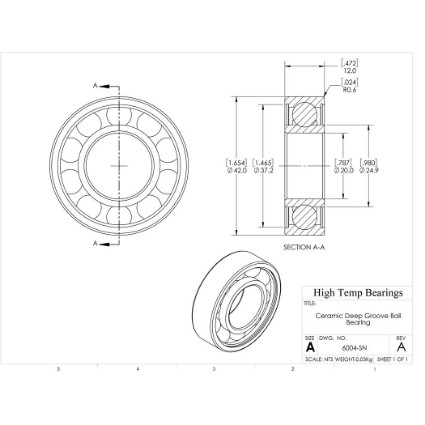

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)20
D (mm)42
B (mm)12
d1 (mm)24.9
D2 (mm)37.2
C (lb)528
C0 (lb)284
Nmax (RPM)14700
Weight(lbs)0.06
Code101244
PackageQTY1
UOMEA
C (kN)2.35
C0 (kN)1.2625
Ra (mm)0.6
Da (mm)38.8
damin (mm)23.2
kr25
ka0.25
fo14
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
