Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6004-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6004-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$115.50
This product has a minimum quantity of 5

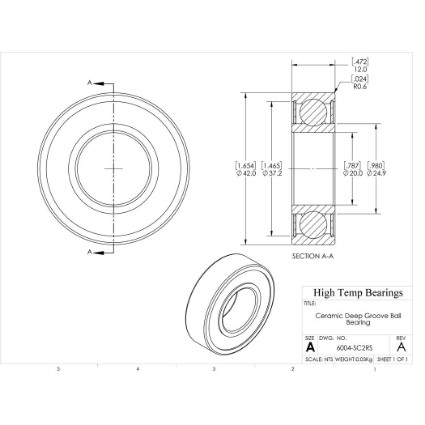

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)20
D (mm)42
B (mm)12
d1 (mm)24.9
D2 (mm)37.2
C (lb)423
C0 (lb)227
Nmax (RPM)12600
Weight(lbs)0.06
Code101243
PackageQTY1
UOMEA
C (kN)1.88
C0 (kN)1.01
Ra (mm)0.6
Da (mm)38.8
damin (mm)23.2
kr25
ka0.25
fo14
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
