Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6003-ZO

Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6003-ZO

Deep Groove, Single Row, Ceramic, Naked, ZrO2
$56.47
This product has a minimum quantity of 3

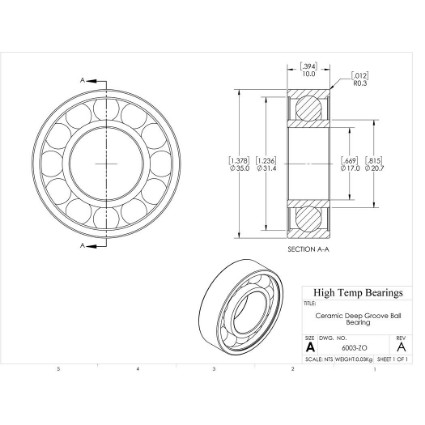

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Bore (mm)17
D (mm)35
B (mm)10
d1 (mm)20.7
D2 (mm)31.4
C (lb)405
C0 (lb)219
Nmax (RPM)15000
Weight(lbs)0.06
Code101238
PackageQTY3
UOMEA
C (kN)1.8
C0 (kN)0.975
Ra (mm)0.3
Da (mm)33
damin (mm)19
kr25
ka0.25
fo14
r (mm)0.3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
