Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6003-SN

Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6003-SN

Deep Groove, Single Row, Ceramic, Naked, Si3N4
$102.67
This product has a minimum quantity of 2

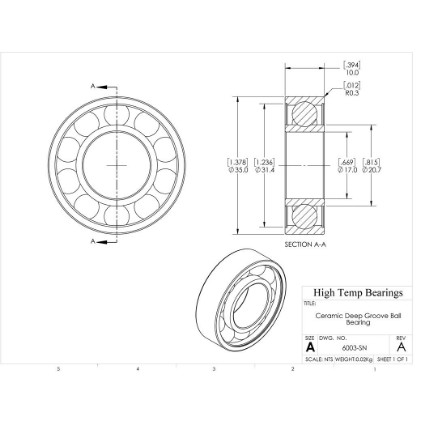

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)17
D (mm)35
B (mm)10
d1 (mm)20.7
D2 (mm)31.4
C (lb)337
C0 (lb)183
Nmax (RPM)17500
Weight(lbs)0.04
Code101236
PackageQTY1
UOMEA
C (kN)1.5
C0 (kN)0.813
Ra (mm)0.3
Da (mm)33
damin (mm)19
kr25
ka0.25
fo14
r (mm)0.3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
