Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6003-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6003-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$107.80
This product has a minimum quantity of 5

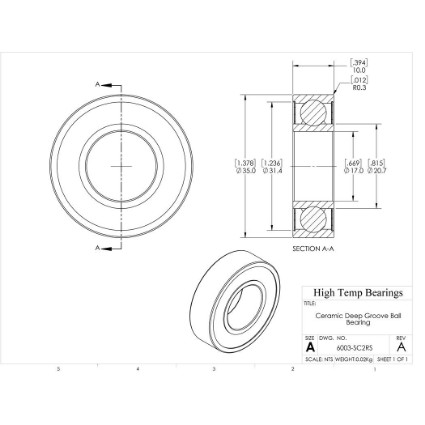

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)17
D (mm)35
B (mm)10
d1 (mm)20.7
D2 (mm)31.4
C (lb)270
C0 (lb)146
Nmax (RPM)15000
Weight(lbs)0.04
Code101234
PackageQTY1
UOMEA
C (kN)1.2
C0 (kN)0.65
Ra (mm)0.3
Da (mm)33
damin (mm)19
kr25
ka0.25
fo14
r (mm)0.3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
