400°C Zirconium Oxide Deep Groove Ball Bearing: 6002-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6002-ZOF

Deep Groove, Full Complement, Single Row, High Temperature 400 °C ZrO2 Ball Bearing
$72.69
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

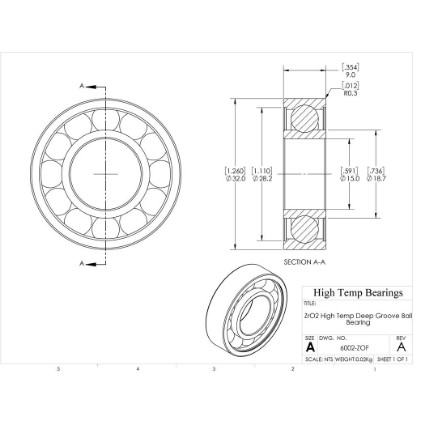

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Shaft Size15mm
D (mm)32
B (mm)9
d1 (mm)18.7
D2 (mm)28.2
C (lb)378
C0 (lb)192
Nmax (RPM)11340
Weight(lbs)0.05
Code101230
PackageQTY1
UOMEA
Bore (mm)15
C (kN)1.68
C0 (kN)0.855
Ra (mm)0.3
Da (mm)30
damin (mm)17
kr25
ka0.25
fo14
r (mm)0.3
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings. Zirconia offers high strength, wear resistance, and flexibility. It has a superior surface hardness, the highest level of impact toughness for a bearing grade ceramic, corrosion resistance, elastic modulus and thermal expansion similar to bearing steel, and good high-temperature performance. It has low thermal conductivity, is electrically non-conductive and non-magnetizing, making it a suitable material to replace metals in many applications where isolation is essential. One notable weakness is high-temperature steam will degrade Zirconia.
