Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6002-ZO

Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6002-ZO

Deep Groove, Single Row, Ceramic, Open ZrO2 Ball Bearing
$66.67
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

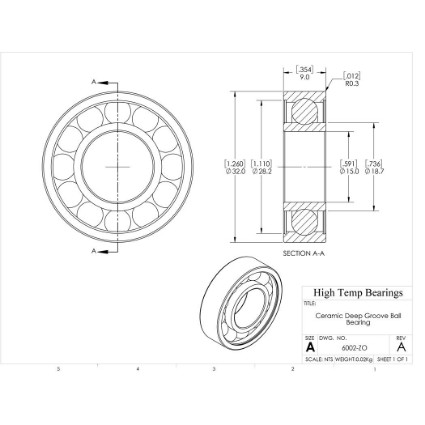

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Shaft Size15mm
D (mm)32
B (mm)9
d1 (mm)18.7
D2 (mm)28.2
C (lb)378
C0 (lb)192
Nmax (RPM)16200
Weight(lbs)0.05
Code101228
PackageQTY3
UOMEA
Bore (mm)15
C (kN)1.68
C0 (kN)0.855
Ra (mm)0.3
Da (mm)30
damin (mm)17
kr25
ka0.25
fo14
r (mm)0.3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
Zirconia offers high strength, wear resistance, and flexibility. It has a superior surface hardness, the highest level of impact toughness for a bearing grade ceramic, corrosion resistance, elastic modulus and thermal expansion similar to bearing steel, and good high-temperature performance. It has low thermal conductivity, is electrically non-conductive and non-magnetizing, making it a suitable material to replace metals in many applications where isolation is essential.One notable weakness is high-temperature steam will degrade Zirconia.
