Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6002-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6002-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$92.40
This product has a minimum quantity of 2

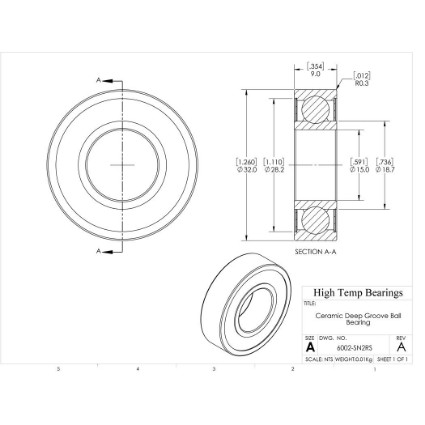

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)15
D (mm)32
B (mm)9
d1 (mm)18.7
D2 (mm)28.2
C (lb)315
C0 (lb)160
Nmax (RPM)18900
Weight(lbs)0.03
Code101227
PackageQTY1
UOMEA
C (kN)1.4
C0 (kN)0.713
Ra (mm)0.3
Da (mm)30
damin (mm)17
kr25
ka0.25
fo14
r (mm)0.3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
