Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6002-SC

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6002-SC

Deep Groove, Single Row, Ceramic, Naked, SiC
$102.67
This product has a minimum quantity of 5

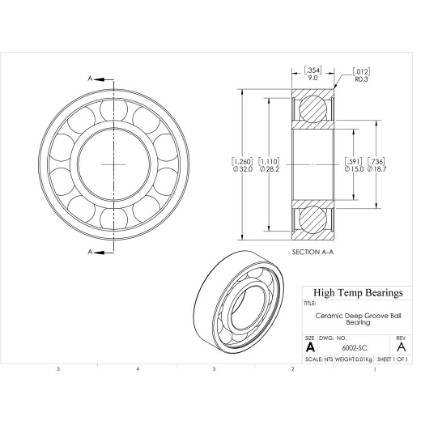

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)15
D (mm)32
B (mm)9
d1 (mm)18.7
D2 (mm)28.2
C (lb)252
C0 (lb)128
Nmax (RPM)16200
Weight(lbs)0.03
Code101223
PackageQTY1
UOMEA
C (kN)1.12
C0 (kN)0.57
Ra (mm)0.3
Da (mm)30
damin (mm)17
kr25
ka0.25
fo14
r (mm)0.3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
