Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6001-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6001-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed ZrO2 Ball Bearing
$56.67
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

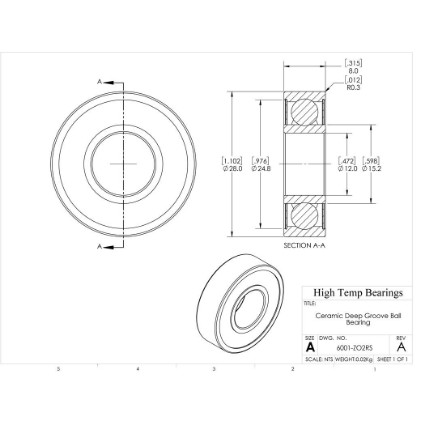

CAD
Specifications:
Attribute nameAttribute value
MaterialZrO2
SealsSeals
Shaft Size12mm
D (mm)28
B (mm)8
d1 (mm)15.2
D2 (mm)24.8
C (lb)344
C0 (lb)162
Nmax (RPM)19200
Weight(lbs)0.04
Code101220
PackageQTY1
UOMEA
Bore (mm)12
C (kN)1.53
C0 (kN)0.72
Ra (mm)0.3
Da (mm)26
damin (mm)14
kr25
ka0.25
fo13
r (mm)0.3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
SeriesZrO2
Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings. Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings. Zirconia offers high strength, wear resistance, and flexibility. It has a superior surface hardness, the highest level of impact toughness for a bearing grade ceramic, corrosion resistance, elastic modulus and thermal expansion similar to bearing steel, and good high-temperature performance. It has low thermal conductivity, is electrically non-conductive and non-magnetizing, making it a suitable material to replace metals in many applications where isolation is essential. One notable weakness is high-temperature steam will degrade Zirconia.
