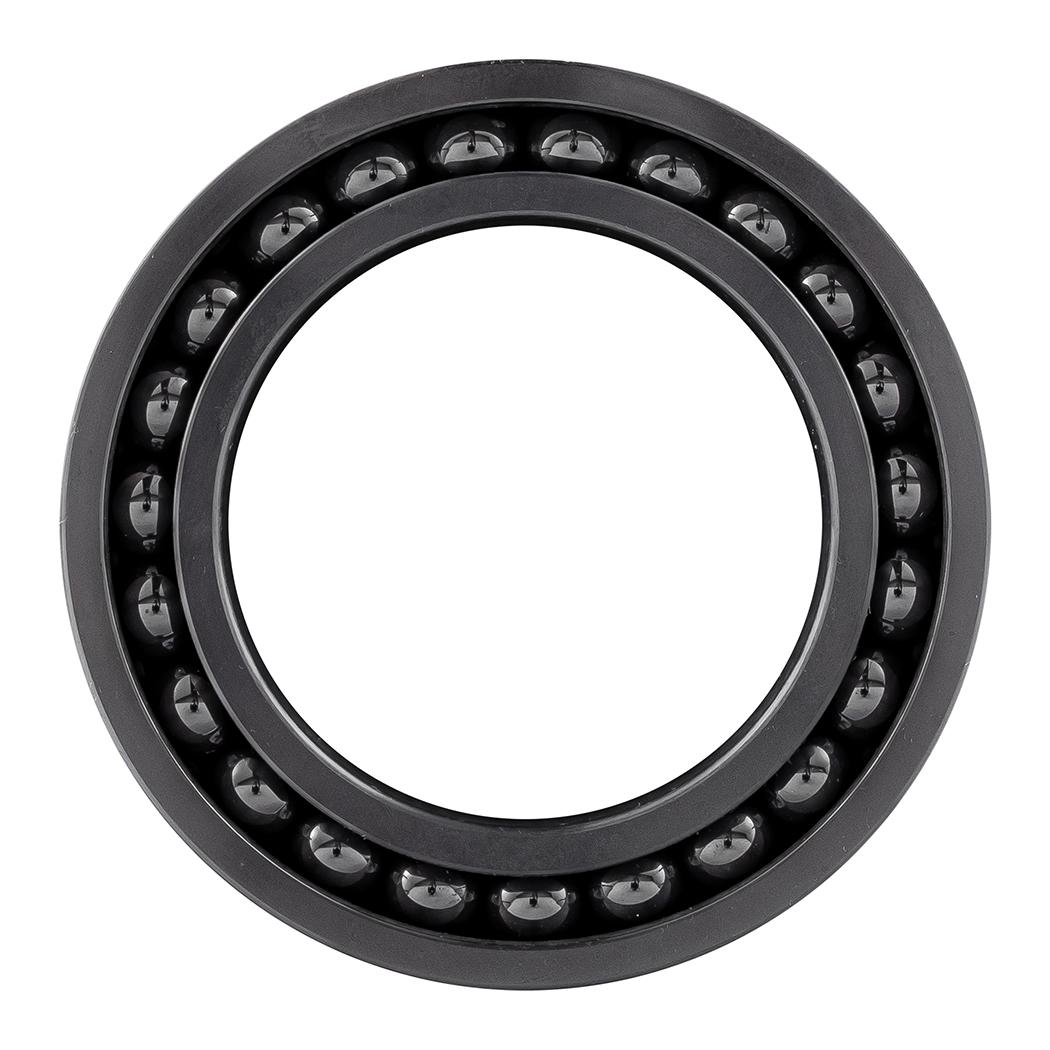

800°C Silicon Nitride Deep Groove Ball Bearing: 6001-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6001-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$74.44
This product has a minimum quantity of 5
CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)12
D (mm)28
B (mm)8
d1 (mm)15.2
D2 (mm)24.8
C (lb)287
C0 (lb)135
Nmax (RPM)15680
Weight(lbs)0.02
Code101218
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)1.275
C0 (kN)0.6
Ra (mm)0.3
Da (mm)26
damin (mm)14
kr25
ka0.25
fo13
r (mm)0.3
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
