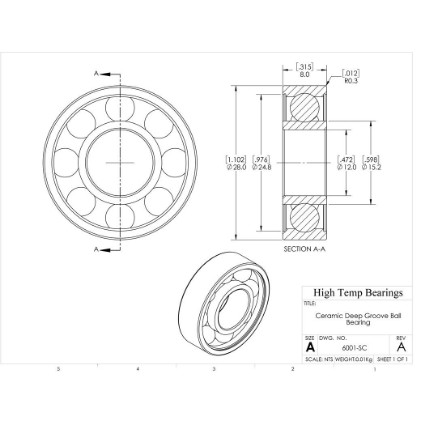

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6001-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6001-SC

Deep Groove, Single Row, Ceramic, Open SiC Ball Bearing
$84.70
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)12
D (mm)28
B (mm)8
d1 (mm)15.2
D2 (mm)24.8
C (lb)229
C0 (lb)108
Nmax (RPM)19200
Weight(lbs)0.02
Code101213
PackageQTY1
UOMEA
C (kN)1.02
C0 (kN)0.48
Ra (mm)0.3
Da (mm)26
damin (mm)14
kr25
ka0.25
fo13
r (mm)0.3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
