800°C Silicon Nitride Deep Groove Ball Bearing: 6000-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6000-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$65.45
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

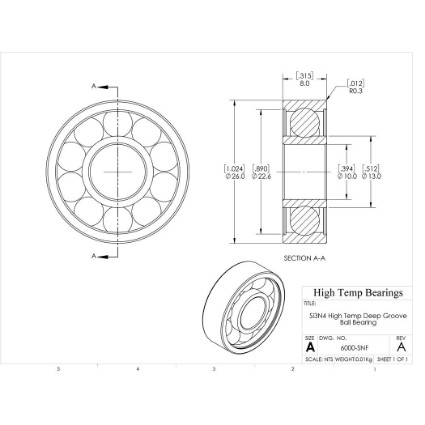

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)10
D (mm)26
B (mm)8
d1 (mm)13
D2 (mm)22.6
C (lb)256
C0 (lb)110
Nmax (RPM)17640
Weight(lbs)0.02
Code270003
PackageQTY1
UOMEA
C (kN)1.138
C0 (kN)0.488
Ra (mm)0.3
Da (mm)24
damin (mm)12
kr25
ka0.25
fo12
r (mm)0.3
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
