Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6000-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6000-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$66.74
This product has a minimum quantity of 2

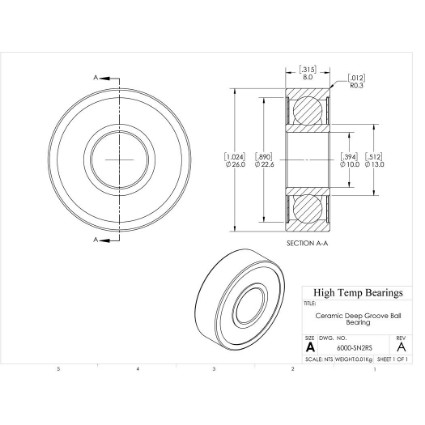

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)10
D (mm)26
B (mm)8
d1 (mm)13
D2 (mm)22.6
C (lb)256
C0 (lb)110
Nmax (RPM)25200
Weight(lbs)0.02
Code101208
PackageQTY1
UOMEA
C (kN)1.138
C0 (kN)0.488
Ra (mm)0.3
Da (mm)24
damin (mm)12
kr25
ka0.25
fo12
r (mm)0.3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
