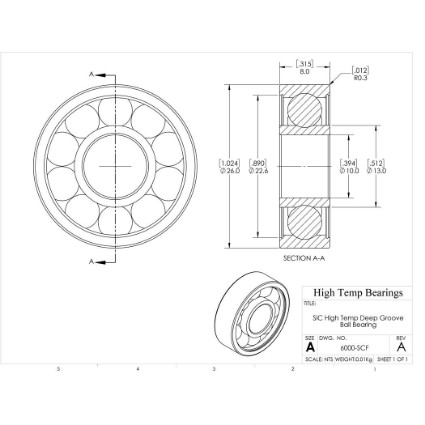

1200°C Silicon Carbide Deep Groove Ball Bearing: 6000-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6000-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$73.15
This product has a minimum quantity of 5
CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)10
D (mm)26
B (mm)8
d1 (mm)13
D2 (mm)22.6
C (lb)205
C0 (lb)88
Nmax (RPM)15120
Weight(lbs)0.02
Code270002
PackageQTY1
UOMEA
SeriesSiC
C (kN)0.91
C0 (kN)0.39
Ra (mm)0.3
Da (mm)24
damin (mm)12
kr25
ka0.25
fo12
r (mm)0.3
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
