Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6000-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6000-SC

Deep Groove, Single Row, Ceramic, Open SiC Ball Bearing
$69.30
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

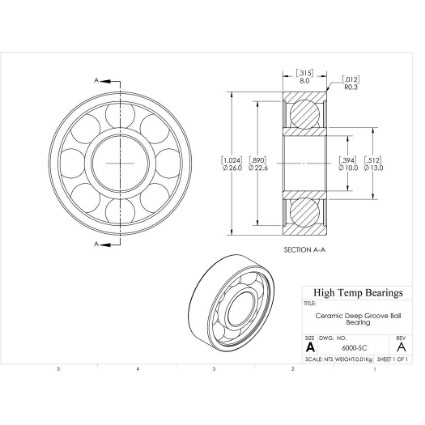

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)10
D (mm)26
B (mm)8
d1 (mm)13
D2 (mm)22.6
C (lb)205
C0 (lb)88
Nmax (RPM)21600
Weight(lbs)0.02
Code101205
PackageQTY1
UOMEA
C (kN)0.91
C0 (kN)0.39
Ra (mm)0.3
Da (mm)24
damin (mm)12
kr25
ka0.25
fo12
r (mm)0.3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
