Cup and cone tapered roller bearing: 539532A

Cup and cone tapered roller bearing: 539532A

Cup and cone tapered roller bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

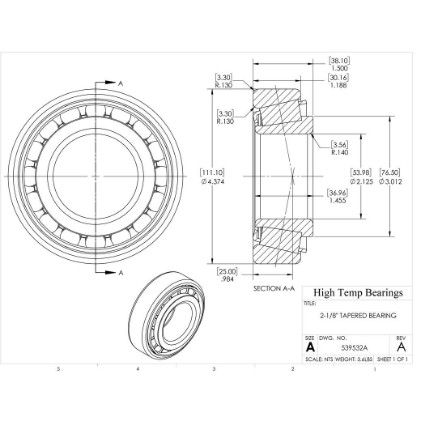

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size2-1/8"
D (mm)111.125
B (mm)38.1
C (lb)41140
C0 (lb)42714
Pu (lb)4856
Nr (RPM)5300
Nmax (RPM)6300
d1 (mm)76.5
T (mm)36.957
Weight(lbs)3.6
Code410171
Bore (mm)53.975
Da (mm)64
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)30.1625
Damin-db (mm)89
damax (mm)64
dbmin (mm)67
Dbmin (mm)67
r1-r2 (mm)3.556
r3-r4 (mm)3.302
a (mm)25
Camin (mm)4
Cbmin (mm)7.5
ramax (mm)3.5
rbmax (mm)3.3
e0.3
Y2
Y01.1
t (mm)36.957
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
