4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF318NT600-494

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF318NT600-494

4-Bolt, NT600, Solid
$1,458.56
CAD
MANUAL

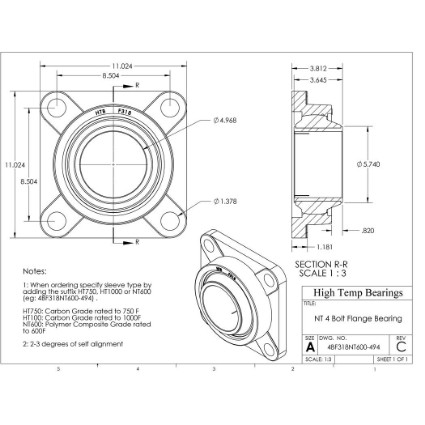

Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
Tmax (F)500
Bore (in)4.968
A (in)3.645
B (in)11.24
C (in)3.812
D (in)8.54
F (in)1.378
H (in)1.181
J (in)0.82
L (in)5.74
Bearing InsertHR318-NT6-494
Static (lb)9034
Weight(lbs)44
Code104276
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)4.938
Tmin (F)-400
MaterialNT600
10 RPM (lb)9034
50 RPM (lb)9034
100 RPM (lb)1807
200 RPM (lb)1807
Max Cap Load (lb)6900
Max Thrust Load (lb)903
Tservice (F)500
Shaft size4 15/16"
