Home
>
Sleeve Bearings
>
Solid Mounted Sleeve Bearings
>
4-1/2" 500 °F PTFE 4 Bolt Flange Bearing
Print Page

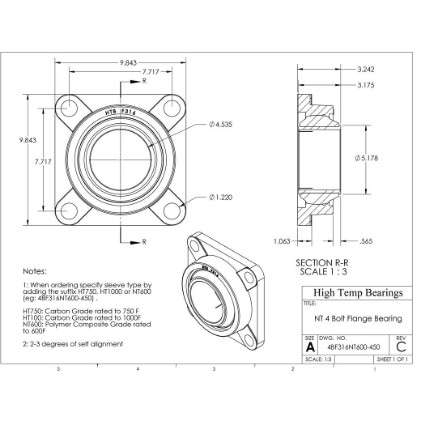

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF316NT600-450
4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF316NT600-450
4-Bolt Flange 500 °F Solid Mounted PTFE Composite Sleeve Bearing
$1,523.38
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Tmax (F)
500
Shaft Size
4-1/2"
A (in)
3.175
B (in)
9.843
C (in)
3.242
D (in)
7.717
F (in)
1.22
H (in)
1.63
J (in)
0.565
L (in)
5.178
Bearing Insert
HR316-NT6-450
Static (lb)
7161
Weight(lbs)
32
Code
400114
PackageQTY
1
UOM
EA
Series
HR
Bore (in)
4.535
ShaftDia (in)
4.5
Tmin (F)
-400
10 RPM (lb)
7161
50 RPM (lb)
7161
100 RPM (lb)
1432
200 RPM (lb)
1432
Max Cap Load (lb)
6900
Max Thrust Load (lb)
716
Tservice (F)
500
Material
NT600
Self-aligning, maintenance-free, PTFE composite sleeve is a proven, simple, and reliable bearing that reduces torque by up to 100x and has up to 10x more wear life than a carbon sleeve bearing. They run silently, fully self-lubricate, dampen vibration, are corrosion-proof, and maintenance-free. Ideal for use in hot, extreme cold, and corrosive applications under 100 RPM.
