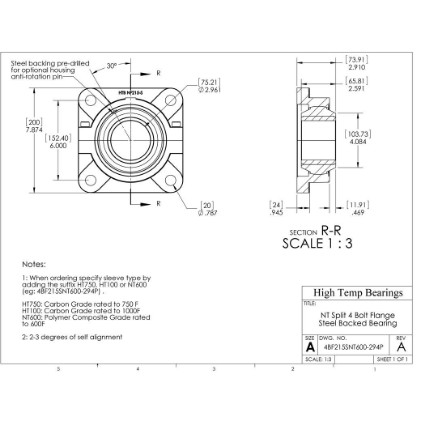

Split 4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF215SNT600-294P

Split 4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF215SNT600-294P

4-Bolt, NT600, Split Steel
$1,332.00
CAD
MANUAL
Specifications:
Attribute nameAttribute value
ConstructionSplit 4-Bolt Flange
Tmax (F)500
Bore (in)2.961
A (in)2.591
B (in)7.874
C (in)2.91
D (in)6
F (in)0.787
H (in)0.945
J (in)0.469
L (in)4.84
Bearing InsertSSP215-NT6-294
Static (lb)3818
Weight(lbs)20
Code440070
PackageQTY1
UOMEA
SeriesSSP
ShaftDia (in)2.938
Tmin (F)-400
MaterialNT600
10 RPM (lb)3818
50 RPM (lb)3818
100 RPM (lb)3818
200 RPM (lb)764
Max Cap Load (lb)3818
Max Thrust Load (lb)382
Tservice (F)500
Shaft size2 15/16"
