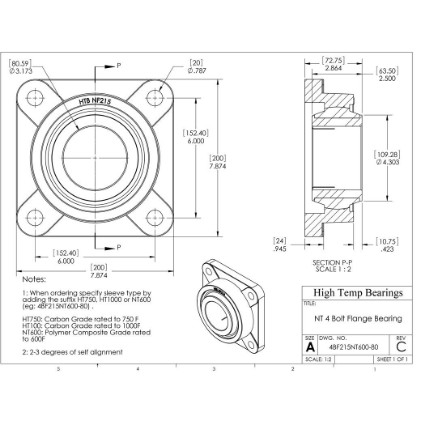

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF215NT600-80

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF215NT600-80

4-Bolt, NT600, Solid
$694.88
CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
Tmax (F)500
Bore (in)3.173
A (in)2.5
B (in)7.874
C (in)2.864
D (in)6
F (in)0.787
H (in)0.945
J (in)0.423
L (in)4.33
Bearing InsertHR215-NT6-80
Static (lb)3949
Weight(lbs)18
Code400106
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)3.15
Tmin (F)-400
MaterialNT600
10 RPM (lb)3949
50 RPM (lb)3949
100 RPM (lb)3949
200 RPM (lb)790
Max Cap Load (lb)3949
Max Thrust Load (lb)395
Tservice (F)500
Shaft size80mm
