4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF215NT600-325

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF215NT600-325

4-Bolt, NT600, Solid
$694.88

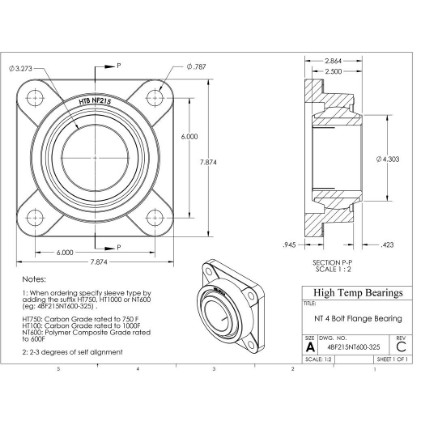

CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
Tmax (F)500
Bore (in)3.273
A (in)2.5
B (in)7.874
C (in)2.864
D (in)6
F (in)0.787
H (in)0.945
J (in)0.423
L (in)4.33
Bearing InsertHR215-NT6-325
Static (lb)4074
Weight(lbs)18
Code103912
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)3.25
Tmin (F)-400
MaterialNT600
10 RPM (lb)4074
50 RPM (lb)4074
100 RPM (lb)4074
200 RPM (lb)815
Max Cap Load (lb)4074
Max Thrust Load (lb)407
Tservice (F)500
Shaft size3 1/4"
