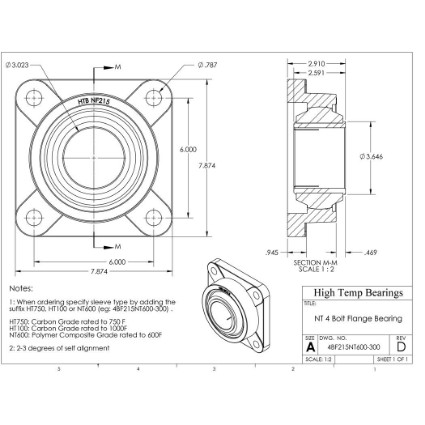

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF215NT600-300

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF215NT600-300

4-Bolt, NT600, Solid
$670.80
CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
Tmax (F)500
Bore (in)3.023
A (in)2.591
B (in)7.874
C (in)2.91
D (in)6
F (in)0.787
H (in)0.945
J (in)0.469
L (in)3.646
Bearing InsertHR215-NT6-300
Static (lb)3898
Weight(lbs)19
Code400103
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)3
Tmin (F)-400
MaterialNT600
10 RPM (lb)3898
50 RPM (lb)3898
100 RPM (lb)3898
200 RPM (lb)780
Max Cap Load (lb)3898
Max Thrust Load (lb)390
Tservice (F)500
Shaft size3"
