Split 4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF212SNT600-244P

Split 4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF212SNT600-244P

4-Bolt, NT600, Split Steel
$1,125.60

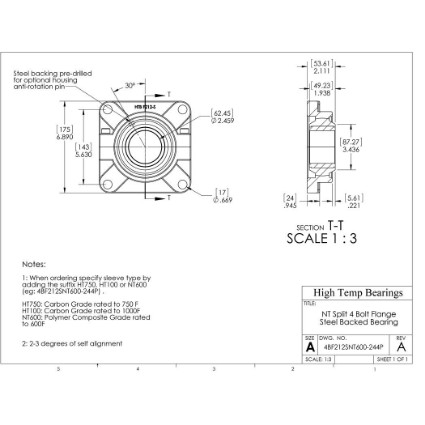

CAD
MANUAL
Specifications:
Attribute nameAttribute value
ConstructionSplit 4-Bolt Flange
Tmax (F)500
Bore (in)2.459
A (in)1.938
B (in)6.89
C (in)2.111
D (in)5.63
F (in)0.669
H (in)0.945
J (in)0.221
L (in)3.436
Bearing InsertSSP212-NT6-244
Static (lb)2373
Weight(lbs)13
Code440064
PackageQTY1
UOMEA
SeriesSSP
ShaftDia (in)2.438
Tmin (F)-400
MaterialNT600
10 RPM (lb)2373
50 RPM (lb)2373
100 RPM (lb)2373
200 RPM (lb)475
Max Cap Load (lb)2360
Max Thrust Load (lb)237
Tservice (F)500
Shaft size2 7/16"
