Split 4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF212SNT600-225P

Split 4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF212SNT600-225P

4-Bolt, NT600, Split Steel
$1,125.60

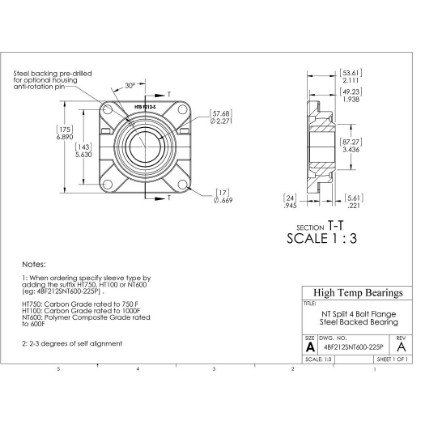

CAD
MANUAL
Specifications:
Attribute nameAttribute value
ConstructionSplit 4-Bolt Flange
Tmax (F)500
Bore (in)2.271
A (in)1.938
B (in)6.89
C (in)2.111
D (in)5.63
F (in)0.669
H (in)0.945
J (in)0.221
L (in)3.436
Bearing InsertSSP212-NT6-225
Static (lb)2190
Weight(lbs)13
Code440062
PackageQTY1
UOMEA
SeriesSSP
ShaftDia (in)2.25
Tmin (F)-400
MaterialNT600
10 RPM (lb)2190
50 RPM (lb)2190
100 RPM (lb)2190
200 RPM (lb)438
Max Cap Load (lb)1920
Max Thrust Load (lb)219
Tservice (F)500
Shaft size2 1/4"
