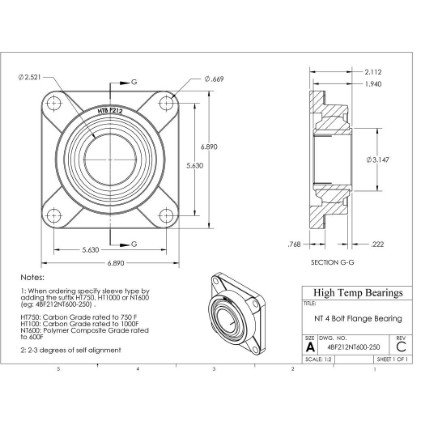

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF212NT600-250

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF212NT600-250

4-Bolt, NT600, Solid
$602.00
CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
Tmax (F)500
Bore (in)2.521
A (in)1.94
B (in)6.89
C (in)2.112
D (in)5.63
F (in)0.669
H (in)0.768
J (in)0.222
L (in)3.147
Bearing InsertHR212-NT6-250
Static (lb)2434
Weight(lbs)12
Code400098
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)2.5
Tmin (F)-400
MaterialNT600
10 RPM (lb)2434
50 RPM (lb)2434
100 RPM (lb)2434
200 RPM (lb)487
Max Cap Load (lb)2360
Max Thrust Load (lb)243
Tservice (F)500
Shaft size2 1/2"
