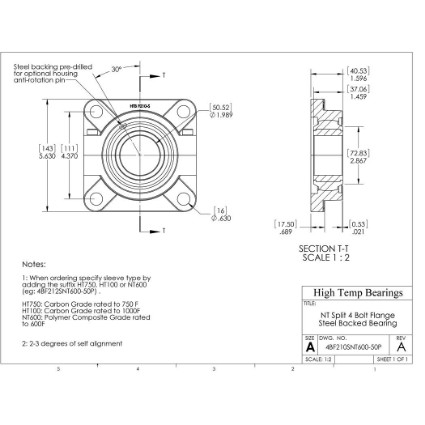

Split 4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF210SNT600-50P

Split 4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF210SNT600-50P

4-Bolt, NT600, Split Steel
$1,032.00
CAD
MANUAL
Specifications:
Attribute nameAttribute value
ConstructionSplit 4-Bolt Flange
Tmax (F)500
Bore (in)1.989
A (in)1.459
B (in)5.63
C (in)1.596
D (in)4.37
F (in)0.63
H (in)0.689
J (in)0.21
L (in)2.867
Bearing InsertSSP210-NT6-50
Static (lb)1442
Weight(lbs)7
Code440061
PackageQTY1
UOMEA
SeriesSSP
ShaftDia (in)1.969
Tmin (F)-400
MaterialNT600
10 RPM (lb)1442
50 RPM (lb)1442
100 RPM (lb)1442
200 RPM (lb)288
Max Cap Load (lb)1442
Max Thrust Load (lb)144
Tservice (F)500
Shaft size50mm
