4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF210NT600-200

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF210NT600-200

4-Bolt, NT600, Solid
$447.89
CAD
MANUAL

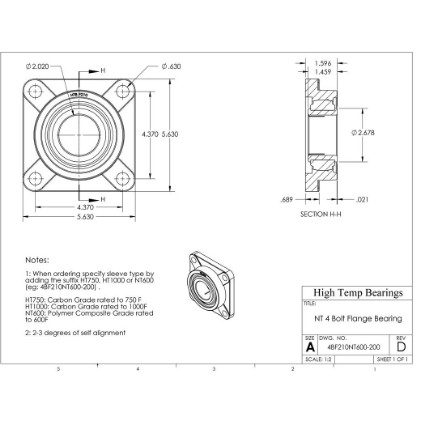

Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
Tmax (F)500
Bore (in)2.02
A (in)1.459
B (in)5.63
C (in)1.596
D (in)4.37
F (in)0.63
H (in)0.689
J (in)0.21
L (in)2.678
Bearing InsertHR210-NT6-200
Static (lb)1465
Weight(lbs)6.5
Code400092
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)2
Tmin (F)-400
MaterialNT600
10 RPM (lb)1465
50 RPM (lb)1465
100 RPM (lb)1465
200 RPM (lb)293
Max Cap Load (lb)1465
Max Thrust Load (lb)146
Tservice (F)500
Shaft size2"
