4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF209NT600-45

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF209NT600-45

4-Bolt, NT600, Solid
$410.05
CAD
MANUAL
Specifications:
Attribute nameAttribute value

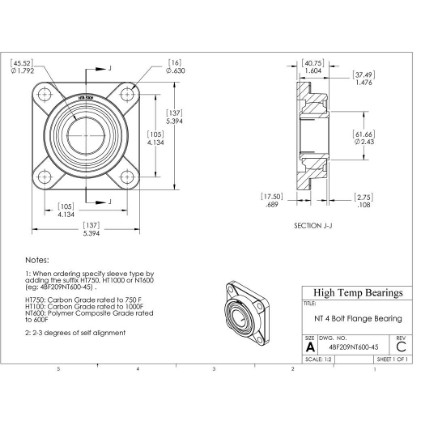

Construction4-Bolt Flange
Tmax (F)500
Bore (in)1.792
A (in)1.476
B (in)5.394
C (in)1.64
D (in)4.134
F (in)0.63
H (in)0.689
J (in)0.18
L (in)2.428
Bearing InsertHR209-NT6-45
Static (lb)1314
Weight(lbs)5.7
Code104244
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)1.772
Tmin (F)-400
MaterialNT600
10 RPM (lb)1314
50 RPM (lb)1314
100 RPM (lb)1314
200 RPM (lb)1314
Max Cap Load (lb)1314
Max Thrust Load (lb)131
Tservice (F)500
Shaft size45mm
