4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF209NT600-40

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF209NT600-40

4-Bolt, NT600, Solid
$410.05

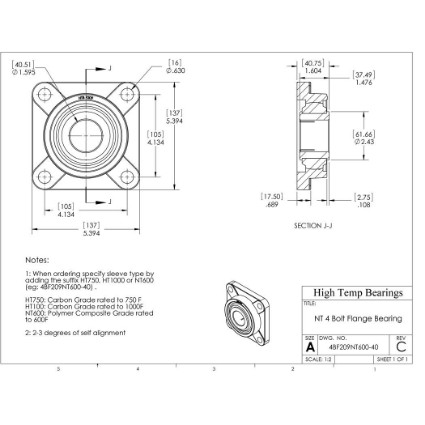

CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
Tmax (F)500
Bore (in)1.595
A (in)1.476
B (in)5.394
C (in)1.64
D (in)4.134
F (in)0.63
H (in)0.689
J (in)0.18
L (in)2.428
Bearing InsertHR209-NT6-40
Static (lb)1168
Weight(lbs)5.7
Code104243
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)1.575
Tmin (F)-400
MaterialNT600
10 RPM (lb)1168
50 RPM (lb)1168
100 RPM (lb)1168
200 RPM (lb)1168
Max Cap Load (lb)1168
Max Thrust Load (lb)117
Tservice (F)500
Shaft size40mm
