4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF206NT600-118

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF206NT600-118

4-Bolt, NT600, Solid
$292.40

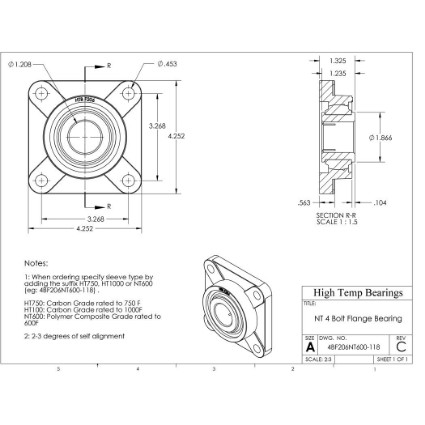

CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
Tmax (F)500
Bore (in)1.208
A (in)1.235
B (in)4.252
C (in)1.325
D (in)3.268
F (in)0.453
H (in)0.563
J (in)0.14
L (in)1.866
Bearing InsertHR206-NT6-118
Static (lb)736
Weight(lbs)2.8
Code400077
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)1.188
Tmin (F)-400
MaterialNT600
10 RPM (lb)736
50 RPM (lb)736
100 RPM (lb)736
200 RPM (lb)736
Max Cap Load (lb)736
Max Thrust Load (lb)74
Tservice (F)500
Shaft size1 3/16”
