4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF206NT600-112

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF206NT600-112

4-Bolt Flange 500 °F Solid Mounted PTFE Composite Sleeve Bearing
$368.91
EA

checkbox icon This item typically ship in 1-4 weeks.

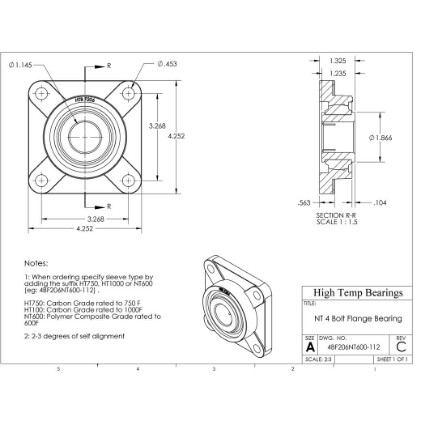

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
Tmax (F)500
Shaft Size1-1/8"
A (in)1.235
B (in)4.252
C (in)1.325
D (in)3.268
F (in)0.453
H (in)0.563
J (in)0.14
L (in)1.866
Bearing InsertHR206-NT6-112
Static (lb)697
Weight(lbs)2.8
Code400076
PackageQTY1
UOMEA
SeriesHR
Bore (in)1.145
ShaftDia (in)1.125
Tmin (F)-400
10 RPM (lb)697
50 RPM (lb)697
100 RPM (lb)697
200 RPM (lb)697
Max Cap Load (lb)697
Max Thrust Load (lb)70
Tservice (F)500
MaterialNT600
Self-aligning, maintenance-free, PTFE composite sleeve is a proven, simple, and reliable bearing that reduces torque by up to 100x and has up to 10x more wear life than a carbon sleeve bearing. They run silently, fully self-lubricate, dampen vibration, are corrosion-proof, and maintenance-free. Ideal for use in hot, extreme cold, and corrosive applications under 100 RPM.
