Split 4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF205SNT600-100P

Split 4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF205SNT600-100P

4-Bolt, NT600, Split Steel
$516.78

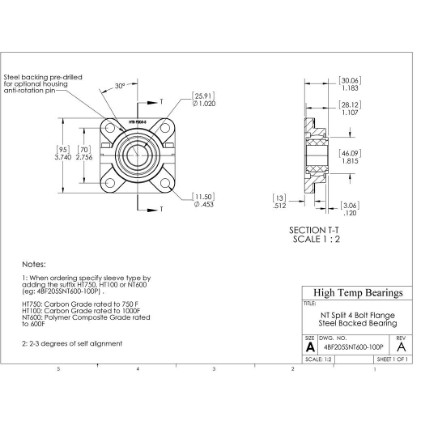

CAD
MANUAL
Specifications:
Attribute nameAttribute value
ConstructionSplit 4-Bolt Flange
Tmax (F)500
Bore (in)1.02
A (in)1.17
B (in)3.74
C (in)1.183
D (in)2.756
F (in)0.453
H (in)0.512
J (in)0.12
L (in)1.815
Bearing InsertSSP205-NT6-100
Static (lb)557
Weight(lbs)2
Code440048
PackageQTY1
UOMEA
SeriesSSP
ShaftDia (in)1
Tmin (F)-400
MaterialNT600
10 RPM (lb)557
50 RPM (lb)557
100 RPM (lb)557
200 RPM (lb)557
Max Cap Load (lb)557
Max Thrust Load (lb)56
Tservice (F)500
Shaft size1"
