4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF205NT600-094

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF205NT600-094

4-Bolt Flange 500 °F Solid Mounted PTFE Composite Sleeve Bearing
$244.24
EA

checkbox icon This item typically ship in 1-4 weeks.

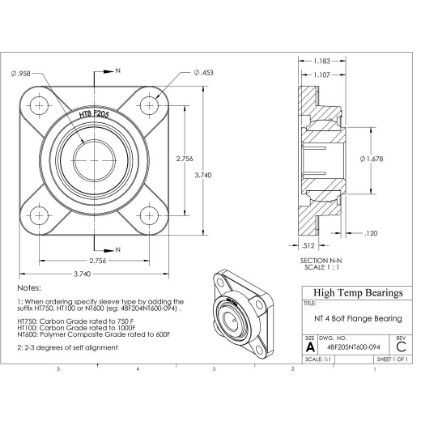

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
Tmax (F)500
Bore (in)0.958
A (in)1.17
B (in)3.74
C (in)1.183
D (in)2.756
F (in)0.453
H (in)0.512
J (in)0.12
L (in)1.678
Bearing InsertHR205-NT6-094
Static (lb)523
Weight(lbs)1.9
Code104214
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)0.938
Tmin (F)-400
MaterialNT600
10 RPM (lb)523
50 RPM (lb)523
100 RPM (lb)523
200 RPM (lb)523
Max Cap Load (lb)523
Max Thrust Load (lb)52
Tservice (F)500
Shaft size15/16"
