4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF204NT600-062

4-Bolt Flange NT600 Composite Sleeve Bearing: 4BF204NT600-062

4-Bolt, NT600, Solid
$195.40

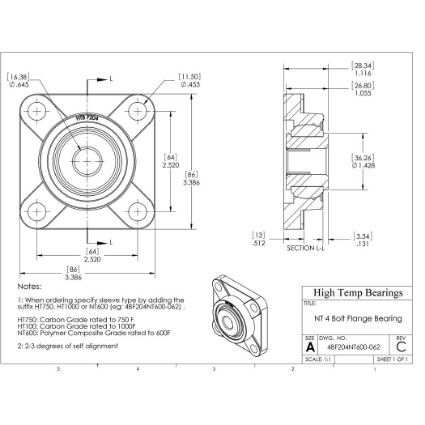

CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
Tmax (F)500
Bore (in)0.645
A (in)1.55
B (in)3.386
C (in)1.116
D (in)2.52
F (in)0.453
H (in)0.512
J (in)0.131
L (in)1.428
Bearing InsertHR204-NT6-062
Static (lb)339
Weight(lbs)1.5
Code400070
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)0.625
Tmin (F)-400
MaterialNT600
10 RPM (lb)339
50 RPM (lb)339
100 RPM (lb)339
200 RPM (lb)339
Max Cap Load (lb)339
Max Thrust Load (lb)34
Tservice (F)500
Shaft size5/8"
