Cup and cone tapered roller bearing: 462453X

Cup and cone tapered roller bearing: 462453X

Cup and cone tapered roller bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Description
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410172
Shaft Size2-1/4"
SealsNone
ConstructionSingle Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

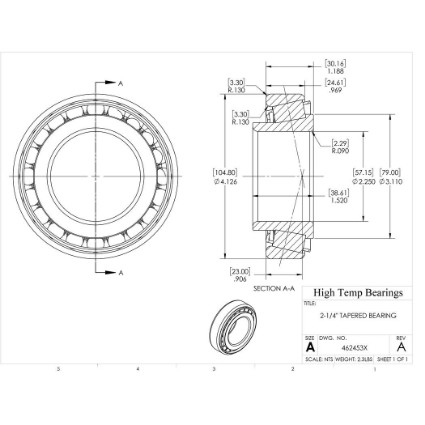

Dimensions
Attribute nameAttribute value
Bore (mm)57.15
D (mm)104.775
B (mm)30.1625
d1 (mm)79
T (mm)38.608
P (mm)24.60498
r1-r2 (mm)2.286
r3-r4 (mm)3.302
a (mm)23
t (mm)38.608
Abutment Dimensions
Attribute nameAttribute value
Da (mm)68
Damin-db (mm)91
damax (mm)68
dbmin (mm)68
Dbmin (mm)68
Camin (mm)4
Cbmin (mm)5.5
ramax (mm)2.3
rbmax (mm)3.3
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed5300
Nmax (RPM)Limiting speed6300
C (lb)Dynamic load capacity33722
C0 (lb)Static load capacity35970
Pu (lb)Fatigue load limit4181
eLimiting value0.33
YCalculation factor1.8
Y0Calculation factor1
Mass
Attribute nameAttribute value
Weight(lbs)2.3
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
