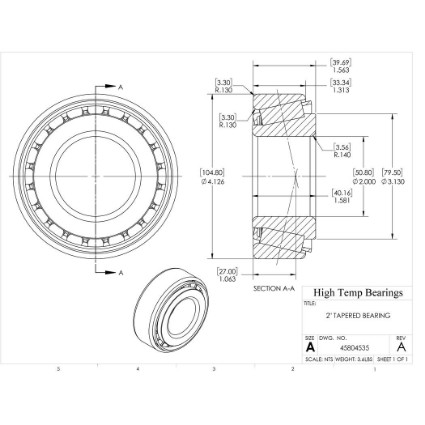

Cup and cone tapered roller bearing: 45804535
Cup and cone tapered roller bearing: 45804535
Cup and cone tapered roller bearing
$196.83
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Specifications:
Description
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
Product Information
Attribute name
Attribute value
Code
410168
Shaft Size
2"
Seals
None
Construction
Single Row
Material
52100
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Dimensions
Attribute name
Attribute value
Bore (mm)
50.8
D (mm)
104.775
B (mm)
39.6875
d1 (mm)
79.5
T (mm)
40.1574
P (mm)
33.3375
r1-r2 (mm)
3.556
r3-r4 (mm)
3.302
a (mm)
27
t (mm)
40.1574
Abutment Dimensions
Attribute name
Attribute value
Da (mm)
65
Damin-db (mm)
87
damax (mm)
65
dbmin (mm)
64
Dbmin (mm)
64
Camin (mm)
5
Cbmin (mm)
6
ramax (mm)
3.5
rbmax (mm)
3.3
Calculation Data
Attribute name
Attribute value
Nr (RPM)
Reference speed
5300
Nmax (RPM)
Limiting speed
6300
C (lb)
Dynamic load capacity
43838
C0 (lb)
Static load capacity
50357
Pu (lb)
Fatigue load limit
5620
e
Limiting value
0.33
Y
Calculation factor
1.8
Y0
Calculation factor
1
Mass
Attribute name
Attribute value
Weight(lbs)
3.6
Tolerance Class
Attribute name
Attribute value
Clearance
CN
Safe Loads
Attribute name
Attribute value
Tmax (F)
250
Tmin (F)
-40
