Picture of Deep Groove, Double Row, Open
Picture of Deep Groove, Double Row, Open
Picture of Deep Groove, Double Row, Open
Picture of Deep Groove, Double Row, Open

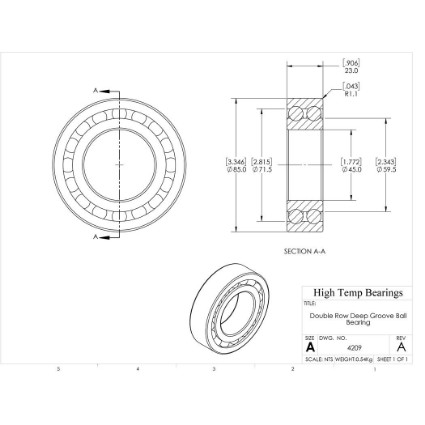

Picture of 45mm 4209 Double Row Ball Bearing
Deep Groove, Double Row, Open Ball Bearing
$123.54

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code200411
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series4200
Construction248F Open
DutyStandard
SealsNone
Shaft Size45mm
Material52100

Dimensions

Attribute nameAttribute value
Bore (mm)45
D (mm)85
B (mm)23
r (mm)1.1
D2 (mm)71.5
d1 (mm)59.5

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)1
Da (mm)78.5
damin (mm)51.5

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed12000
Nmax (RPM)Limiting speed6700
krMinimum radial load factor50
foCalculation factor15
C (lb)Dynamic load capacity8768
C0 (lb)Static load capacity8093
Pu (lb)Fatigue load limit344

Mass

Attribute nameAttribute value
Weight(lbs)1.19

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
